Network architecture defines how servers and clients are able to interact. Notably network architecture may be of interest in secure installations and high availability installations. Network architecture may be used to:

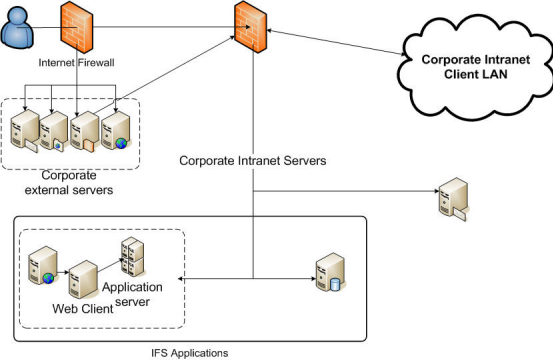

For security (and performance) reasons, it is a good idea to place all or most IFS Applications server in the same server environment, connected by a network with low latency and great bandwidth. Utilize firewall rules to allow only necessary traffic and prevent forged packets will increase security a lot.
The perimeter defense model builds on the same principles as ships and their watertight bulkheads. This models key concept is to segment your network in to different zones, the barrier between these zones are more or less watertight. The most common configuration is with 3 zones, the External Zone, Middle Zone and Internal Zone but that number can be increased. For big companies these zones can become quite big. You can then section this zones in to smaller sub zones that are cut of from each other with the help of firewalls. Some companies also section of there different departments.
The zone principle are there to prevent an attack from spread to more computers and in particular to computers with more sensitive information (which hopefully are in another zone).
This is the most insecure zone. In most cases this is the Internet but some may also put partner networks in this zone. Any computer put in this zone will be attack. In most cases this will not take more then minutes, Uppsala University did experiments with computers sitting directly on the internet and they did not even have time to start properly before they where under attack. Most of these attacks are automated and done by network worms or by script kiddies (a script kiddy is a person that attacks computers but lack the technical knowledge to construct his/her own attacks and just uses downloaded scripts and programs form the Internet.)
It is not recommended to have anything other then honey pots in this zone.
It is the zone in between your intranet and Internet. It's the not so trusted network segments. Normally this is the only zone that are allowed access form the Internet. Then the attack comes (because the attack will always gone come sooner or later) this is the zone that gets hit. The idea with DMZ are that servers sitting in this zone are the only ones that are compromised. With the right configuration this zone has no need to initiate connections into the Internal Zone. When servers in the DMZ starts to try to connect to IP in the Internal zone we know that there has been a breach of security.
You should always try to minimize the number of servers in the DMZ, the more servers you can put in the internal zone the better. There are a few things that you should always do and have in the DMZ.
This is the last zone. In this zone no access to and from the internet should be allowed. Employees needs to surf the web are preferably handled by a proxy sitting in the DMZ but it can also be handled by letting web traffic connect to servers outside the DMZ (but not recommended). Under no circumstances should traffic be coming in to this zone from Internet.
IFS Applications can be portioned in a couple of different ways, and two recommended ways are provided.
One approach is to only put a reverse proxy in DMZ. A reverse proxy is basically a server which acts as an transparent filter, it lets approved traffic flow through and drops the traffic that are not approved.

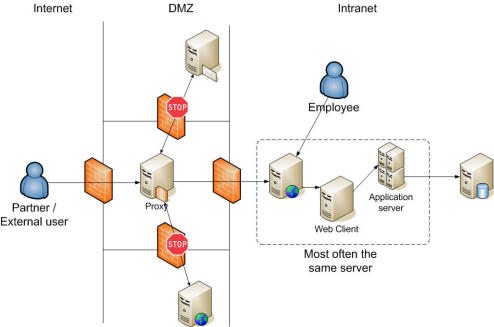

Perimeter defense with only Reverse Proxy in DMZ
At low/medium security requirements, the proxy is configured to only allow access to the IFS Web Client site. This stops the people from accessing sensitive URL:s such as common Microsoft IIS scripts and Extended Server.
Note: Not all proxies are designed to prevent "traversal" out of such restrictions. It should be checked with vendor if proxy do prevent URL traversal. For high security installations, further security restrictions are advised.
At high level security demands, it is possible to configure the proxy to only allow access to specific URLs which are only used when reference users utilize the application. By configuring so, the proxy not only locks down users to "only access the web site", but also "only access the specific features reference users utilize". It also prevents possible traversal attacks.
Security may be further improved by utilizing a proxy which has Intrusion Prevention System (IPS) capabilities. IPS proxies are able to block any traffic they consider odd, suspicious or similar to known attack patterns.
Firewall rules for this configuration are very simple. Web Browsers must to be able to initiate HTTP / HTTPS traffic to proxy. Standard web server ports (80 for HTTP or 443) are usually used. No other ingress/egress rules are required for operation.
Firewall rules for this configuration are very simple. Proxy must to be able to initiate HTTP / HTTPS traffic to Web Server / IFS Web Client / Extended Server. Ports may be configured to nonstandard numbers - refer to web server "Listen" configuration or installation logs. No other ingress/egress rules are required for operation.
Defense in Depth (DiD) is a security term that builds on the assumption that everything can and will be over run at some point (think of a big bank vault with thick steal walls it is only a matter of time until a bank robber breaches the walls to the vault). The DiD principle states that security is to be layered and all layers should be independent of each other.
One Defense in Depth method is to enhance the perimeter defense model with more firewall zones.
Enhanced perimeter defense
Extranet Zone is an extension to the perimeter defense model. Extranet is similar to DMZ, in essences it provides a part of the network to external users. The difference is that
It is generally not a good idea to rely solely on IP ranges to protect access to Extranet over Internet since it is possible to forge addresses. A more secure extranet can be archived by:
SSL / TLS / HTTPS encryption can be enabled for communication between Internet - DMZ and DMZ - Intranet. This is recommended because it helps to protect the information sent and received by the user and the web client.
